Guide: Verify CryoSPARC Installation with the Extensive Workflow (≤v4.2)

PreviousGuide: Verify CryoSPARC Installation with the Extensive Validation Job (v4.3+)NextGuide: Performance Benchmarking (v4.3+)

Last updated 1 year ago

For the version of this guide applicable to CryoSPARC versions v4.3.0+, please see:

Introduction

CryoSPARC provides a job called "Extensive Workflow for T20S", which performs a full 3D reconstruction of the T20S Proteasome () from a small (~8GB) subset of movies. The CryoSPARC engineering team uses this job to automatically test and benchmark CryoSPARC between releases.

System Administrators may use the extensive workflow job to verify that CryoSPARC is correctly configured following a fresh installation or an update.

  • Import Micrographs

  • Motion Correction

  • CTF Estimation

  • Particle Picking and Extraction

  • 2D Classification

  • Ab-initio reconstruction

  • Homogeneous Refinement

The following system requirements are verified:

  • CryoSPARC system and license installation

  • Worker/Cluster configuration

  • GPU and CUDA driver installation

  • SSD caching

The sample data has the following characteristics:

  • Number of images: 20

  • Frames per image: 38

  • Image size: 7420 × 7676 (K2 Super Resolution)

  • Pixel size: 0.66 Å

Once started, the workflow should take no more than an hour to complete.

Prerequisites

Creating and Running the Extensive Workflow

  1. Open the CryoSPARC web interface

  2. In the dashboard, create a new Project from the navigation bar

Specify a descriptive title such as "Extensive Workflow Testing" and directory for the project to store its data.

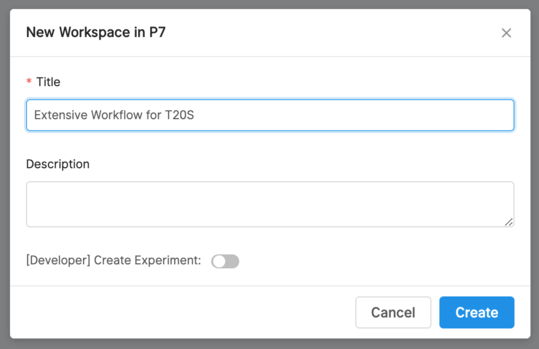

3. Create a new workspace for that project.

Best practices: Create a new workspace and run the Extensive Workflow in that workspace each time CryoSPARC updates and restarts. Name each workspace with the latest installed version of CryoSPARC that the job runs on. For example, when testing CryoSPARC v2.15.0, name the workspace "v2.15.0 Benchmark & Validation"

4. Select the Job Builder from the sidebar and select the "Extensive Workflow for T20S (BENCH) (BETA)" job (under Workflows)

5. (Optional) If desired, change the workflow parameters.

6. Select "Queue" and choose a worker lane for the job, then select "Create"

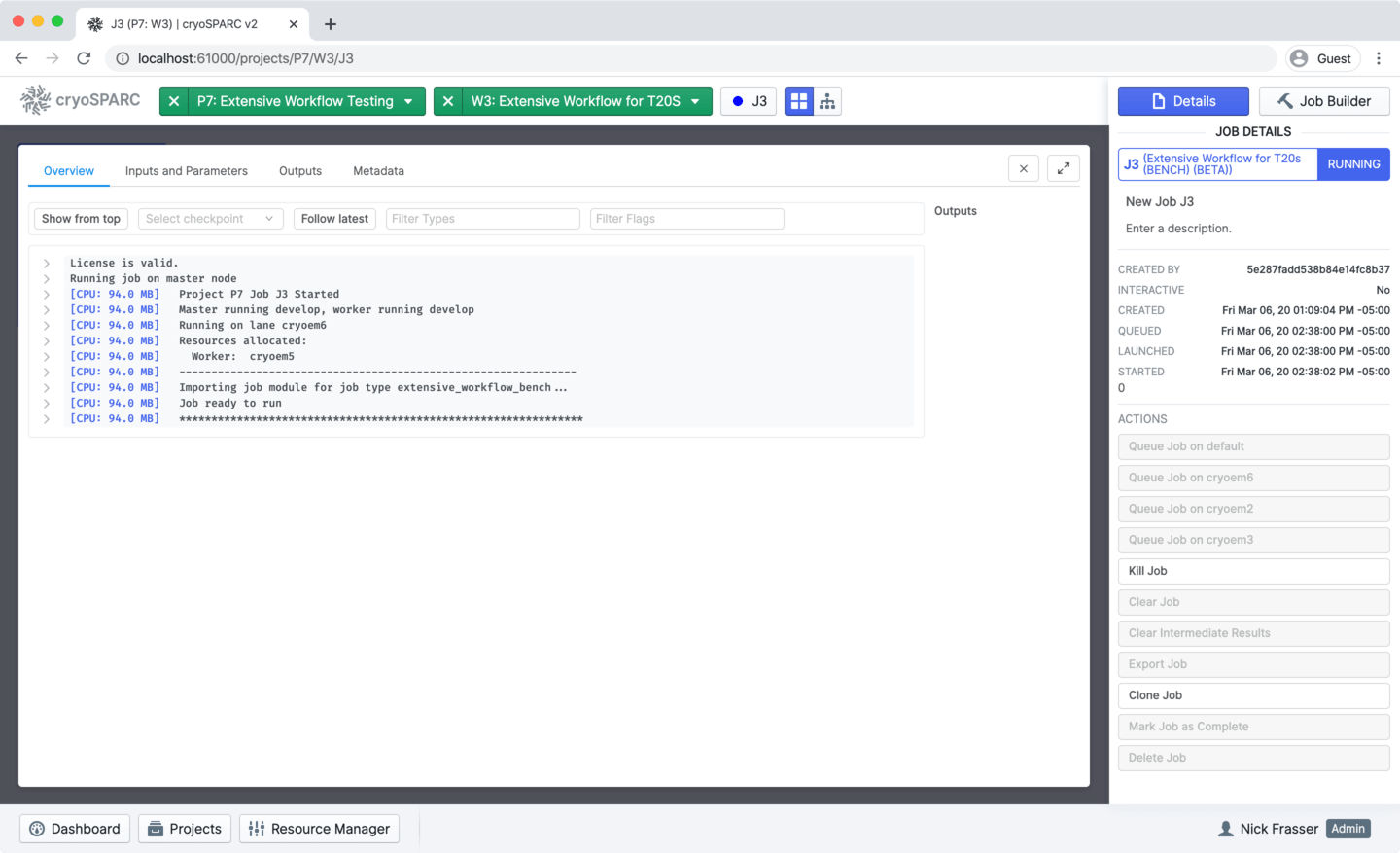

After queuing, a modal opens with an overview of the workflow job progress. The job status should shortly change to "Running".

Close the modal with the × button. This shows a workspace overview with the child jobs that the Extensive Workflow job spawns to carry out T20S processing.

Once all child jobs successfully complete, the Extensive Workflow job status changes to "Completed". This means the installation was successful. Users may now be notified to start or resume processing!

Troubleshooting Failed Jobs

If any child jobs fails, the extensive workflow times-out and its status is set to "Failed".

Scroll through the workspace to find other jobs with the "Failed" status. Open the job overview either by selecting the job number next to the status indicator (e.g., J4) , or by selecting the Job card and pressing the Space key.

Scroll to the bottom to see why the job failed.

Example Import Movies failure because the Gain Reference was not found

Common failure reasons include

Once the configuration issue is resolved, restart the Extensive Workflow job: Either create a new workspace and job as already noted, or clear the existing Extensive Workflow job and re-queue.

Additional Extensive Testing

For an even more extensive test of robustness, the Extensive Workflow job provides an advanced option called "Run all job types"

  1. Enable advanced mode near the top of the job builder

  2. Enable to "Run all job types" switch

With this option enabled, the job runs additional child jobs in parallel. Use this to verify multi-GPU performance on a single node.

The following additional job types are included:

  • Full-frame motion correction

  • Global CTF estimation

  • Local motion correction

  • Multi-class ab-initio reconstruction

  • Heterogeneous and non-uniform refinement

  • 3D Variability

Expected Results

Below are the results from our tests with CryoSPARC v3.1 on a 4GPU machine with the T20S subset.

Job Type

Approximate Run Time (seconds)

Import Movies

92

Patch Motion Correction (Multi)

220

Full Frame Motion Correction (Multi)

75

Patch CTF Estimation (Multi)

66

Curate Exposures

1.1

Blob Picker

12

Template Picker

13

Inspect Picks

12

Extract from Micrographs (CPU)

39

Extract from Micrographs (GPU)

43

Local Motion Correction

180

2D Classification

280

Select 2D Classes

7.5

Ab-Initio Reconstruction (1 class)

450

Ab-Initio Reconstruction (3 class)

800

Homogenous Refinement

1940

Heterogeneous Refinement (3 class)

3000

Non-Uniform Refinement

4300

Sharpen

32

Validation

94

Global CTF Refinement

41

Local CTF Refinement

46

3D Variability

560

3D Variability Display

140

The Extensive Workflow covers the , including the following workflow jobs:

Specifying a valid "Movies data path" and "Gain reference path" is NOT required; if the path does not exist on the system, cryoSPARC automatically downloads a ~8GB subset of the and deletes the download when the job finishes.

or license key entered incorrectly

On a machine with the , the Extensive Workflow takes ~1 hour with the default settings and ~1 hour 30 minutes with all job types enabled (note that some jobs run in parallel when enough GPUs are available).

full T20S tutorial
How to Download, Install and Configure
T20S dataset
Cannot verify license
Incorrect filesystem permissions
CUDA not set up correctly
SSD cache full or not set up correctly
Worker registration issue
Not enough GPU memory available
Extensive Validation
EMPIAR-10025
recommended system configuration
